S60BL直流无刷减速电机
S60BL BRUSHLESS GEAR MOTOR
基本性能
Genaral Specification
项目 ltem | 性能 Specifications |
绕组方式 Winding Type | 星形 star |
霍尔角度 Hall Effectangle | 120° |
环境温度 Ambient Temperature | -20°C-+50°C |
绝缘电阻 Insulation Resistance | 100 MΩMin.500VDC |
绝缘等级 Insulation class | B |
电气强度 Dielectric Strength | 700VAC for 1 minute |
IP等级 Class of lP | 40 |
电机规格
Electrical Specifications
型号 Model | S60BL78-430 | S60BL99-430 | S60BL120-430 | S60BL141-430 |
极数 Number of poles | 8 | 8 | 8 | 8 |
相数 Number of phases | 3 | 3 | 3 | 3 |
额定电压 Nominal voltage VDC | 48 | 48 | 48 | 48 |
额定转速 Rated speed RPM | 3000 | 3000 | 3000 | 3000 |
额定扭矩 Rated torque N-M | 0.32 | 0.65 | 0.95 | 1.28 |
额定电流 Rated current Amps | 5.5 | 6.5 | 9.5 | 12 |
输出功率 Output power W | 100 | 200 | 300 | 400 |
机身长度 Body length L2 mm | 78 | 99 | 120 | 141 |
传感器 sensor | 霍尔 Honeywell | |||
产品防护等级 Product Class of lP | IP30 | |||
存储环境温度 Storage ambient temperature | -25°C-+70°C | |||
产品表面温度 Product surface temperature | <=80°C | |||
环境湿度 Ambient humidity | 85% RH或以下《无结露) <=85% RH | |||
工作环境 Working environment | 户外(无阳光直射),无腐蚀气体,无易燃气体,无油雾,无尘埃 No direct sunlight,non-corrosive gas, none flammable gas ,no oil misit,no dust | |||
减速机规格
Gearbox Electricalspecification
减速级数 Number of geartrains | 一级 | 二级 |
减速比 Reduction ratio | 3.4.5.7.10. | 20.25.28.30.35.40.45.50.70 |
传动效率 Transmission efficiency | 96% | 94% |
额定允许负载 Rated tolerance torgue | 20 | 40 |
瞬间允许负载 Max momentary tolerance torque | 50 | 60 |
最大允许径向负载 Max radialload | 80 | 94.5 |
最大允许轴向负载 Maxshaft axial load | 80 | 98.5 |
减速箱长度L1 Length(mm) | 80 | 94.5 |

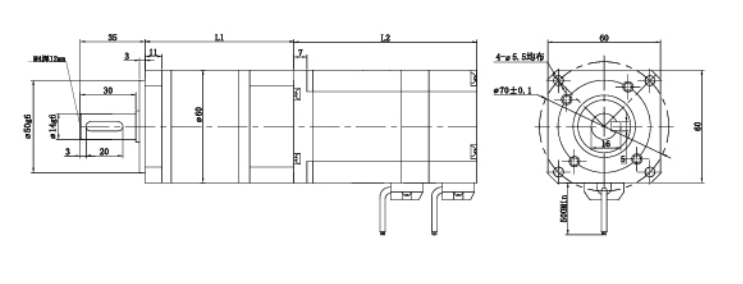

电机外形尺寸
Dimensions
单位
Unit=mm

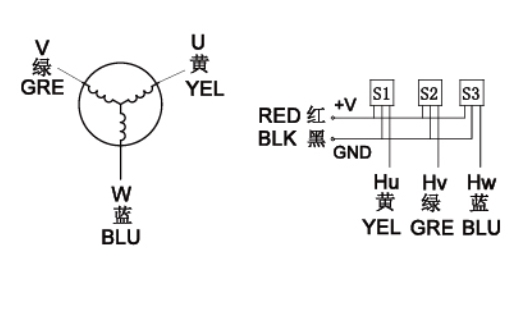

接线图
Wiring Diagram
