无刷驱动器BLD2408A
Brushless driver BLD2408A
产品介绍
feature
BLD2408A直流无刷电机驱动器是本公司利用高性能DSP处理器自主研发完成的,针对小功率直流无刷电机驱动的高科技产品。可应用于上位机(PLC或单片机等)PWM或模拟量速度控制,可采用手动调速方式(自带电位器,也可外接电位器手动调速)PID 速度环，电流环控制
启动停止控制(EN)正反转控制(F/R)制动快速停车(BRK)过载保护设定:通过电位器线性设定不同功率的电机保护参数高速力矩输出平稳,转速稳定 低速大力矩输出过流、过压、欠压、堵转、霍尔信号非法、温度保护速度信号输出异常报警信号输出
BLD2408A brushless DC motor driver is a high-tech product forlow-power brushless DC motor driver, which is independently developed by our company using high-performance DSP processor. Can be applied to host computer (PLC or MCU,etc.)PWM or analog speed control, can use manual speed regulation mode (with potentiometer, can also be external potentiometer manual speed regulation)PlD speed ring, current ring control
电机规格
Electricalspecifications
项目 model | |
输入电源 input power | +12V~+30V直流电源 +12V to +30V DC |
输出电流 current output | 额定电流8A 瞬间最大电流30A(<3S) Rated current8A Momentary maximum current 30A(<3S) |
绝缘电阻 insulation resistance | 常温常压下>500MΩ >500MQ atnormaltemperature and pressure |
冷却方式 type of cooling | 自然冷却 natural cooling |
使用场合 usage occasion | 避免粉尘油污及腐蚀性物体 Avoid dust,oil and corrosive objects |
使用温度 usage temperature | -10°~+50° |
环境湿度 environment humidity | <80%RH不凝露不结霜 <80%RH No condensation or frost |
震动 shake | 最大不超过5.7M/S² The maximum value is 5.7M/S² |
保存 conserve | -20°~+125°避免灰尘最.好使用原包装 To avoid dust,it is best to use the original packaging |

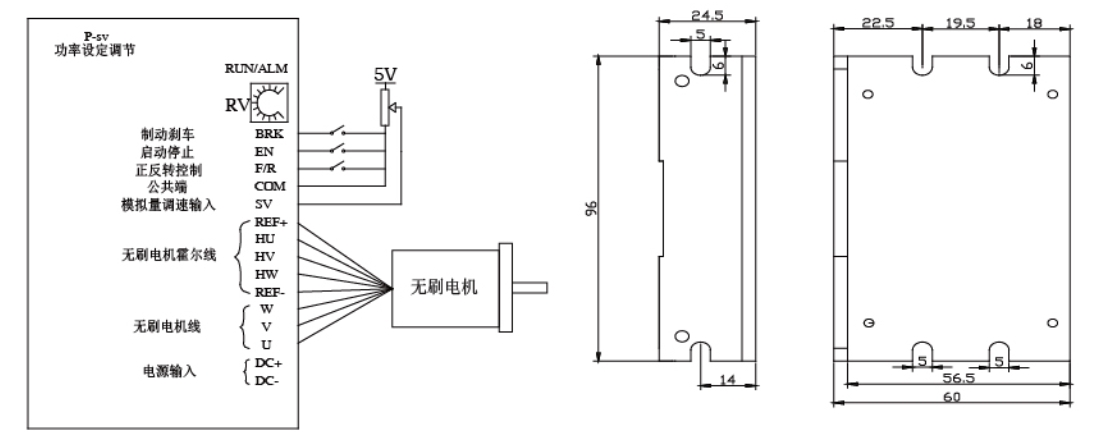

外形尺寸
Dimensions
