无刷驱动器4815B
rushless driver 4815B
产品介绍
feature
BLD-4815B是一款以高性能DSP为运算核心,多功能控制方式直流无刷驱动器。全数字式设计其拥有灵活多样的输入控制方式,完善的软硬件保护功能,驱动器可通过RS-485通信接口与计算机相连,实现参数调整,保护参数,电机参数,加减速时间等参数的设置,
BLD-4815B is a high-performance DSP as the computing core,multi-function control mode DC brushless driver. Full digital design it has a flexible input control mode, perfect software and hardware protection function, the driver can be connected to the computer through the RS-485 communication interface, to achieve parameter adjustment, protection parameters, motor parameters, acceleration and deceleration time and other parameters set.
电机规格/Electricalspecifications:
项目 model | 最小值 minimum | 典型值 Typical values | 最大值 maximum | 单位 unit |
输入电压 Input voltage | 14 | 24 | 60 | V |
输出电流 Output current | 3 | 15 | 15 | A |
欠压保护 Undervoltage protection | 14 | VDC | ||
过压保护 Overvoltage protection | 60 | VDC | ||
转速控制 Speed control | 100 | 3000 | 30000 | Rpm |
重量 Weight | 0.24KG | |||
尺寸 Dimension | 143*80*33(MM) | |||
调速方式 Speed RegulationMode | 1:0-5VDC模拟量输入 0-5VDC analog input 2:0-100%PWM输入(PWM频率范围:[1Kz-20KHz) 0-100%PWM input(PWM frequency range:[1Kz-20KHz) 3:外接电位器调速 external potentiometer speed regulation 4:通过RS-485通讯设定 set byRS-485 communication | |||
过流保护功能 Overcurrent protectio | 当电流超过工作电流设置值并持续一设定时间后产生过流保护 Overcurrent protection is generated when the current exceeds the set value ofthe operating current and continues for a set time. | |||
过压 Overvoltage | 当电压超过60V时产生过电压保护 0vervoltage protection is generated when the voltage exceeds 60V. | |||
欠压 Undervoltage | 当电压低于14V时产生欠电压保护 Undervoltage protection is generated when the voltage is lower than 14V | |||
霍尔异常 Hall abnormal | 霍尔信号出现异常值 Hall signal has an outlier | |||
加减速时间设置 cceleration or deceleration time Set | 通过软件上位机软件可以设置加减速度时间 Abnomal value ofHall signal can be set by the software ofthe upper computer | |||

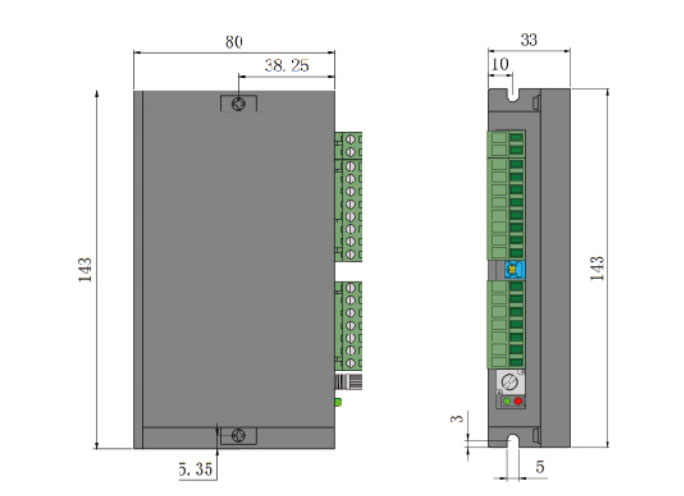

外形尺寸
Dimensions
