S86BL直流无刷电机
S86BL BRUSHLESS DC MOTOR
基本性能
Genaral Specification
项目 ltem | 性能 Specifications |
绕组方式 Winding Type | 星形 star |
霍尔角度 Hall Effectangle | 120° |
环境温度 Ambient Temperature | -20°C-+50°C |
绝缘电阻 Insulation Resistance | 100 MΩMin.500VDC |
绝缘等级 Insulation class | B |
电气强度 Dielectric Strength | 700VAC for 1 minute |
IP等级 Class of lP | 30 |
电机规格
Electrical Specifications
型号 Model | S86BL70-430 | S86BL80-430 | S86BL90-430 | S86BL105-430 | S86BL115-430 | S86BL130-430 |
极数 Number of poles | 4&8 | 4&8 | 4&8 | 4&8 | 4&8 | 4 |
相数 Number of phases | 3 | 3 | 3 | 3 | 3 | 3 |
额定电压 Nominal voltage VDC | 48 | 48 | 48 | 48 | 48 | 48 |
额定转速 Rated speed RPM | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
额定扭矩 Rated torque N-M | 0.7 | 1 | 1.3 | 1.8 | 2.1 | 2.5 |
额定电流 Rated current Amps | 6.5 | 8.5 | 12 | 17 | 17 | 19.5 |
输出功率 Output power W | 200 | 300 | 400 | 565 | 659 | 785 |
峰值扭矩 Peak torque N-M | 1.95 | 2.85 | 3.9 | 5.85 | 6.3 | 7.5 |
峰值电流 Peak current Amps | 19.5 | 25.5 | 36 | 51 | 51 | 55 |
力矩常数 Torque constant N-M/A | 0.127 | 0.127 | 0.127 | 0.127 | 0.127 | 0.127 |
反电势常数 Back EMF constant V/KRPM | 12.6 | 12.6 | 12.6 | 12.6 | 13.3 | 13.3 |
转动惯量 Rotor inertia Kg.mm² | 100 | 120 | 230 | 266 | 320 | 320 |
机身长度 Body length mm(L) | 70 | 80 | 90 | 105 | 115 | 130 |
重量 Mass Kg | 1.8 | 2.3 | 2.9 | 3.4 | 3.8 | 4.3 |
传感器 sensor | 霍尔 Honeywell | |||||
产品防护等级 Product Class of lP | IP30 | |||||
存储环境温度 Storage ambient temperature | -25°C-+70°C | |||||
产品表面温度 Product surface temperature | <=80°C | |||||
环境湿度 Ambient humidity | 85% RH或以下《无结露) <=85% RH | |||||
工作环境 Working environment | 户外(无阳光直射),无腐蚀气体,无易燃气体,无油雾,无尘埃 No direct sunlight,non-corrosive gas, none flammable gas ,no oil misit,no dust | |||||
电机外形尺寸

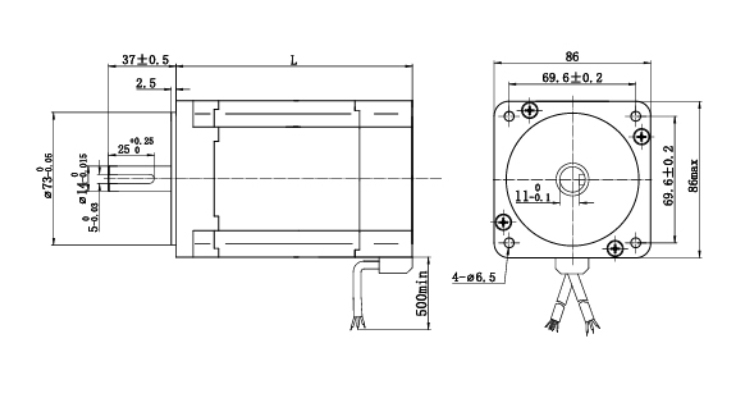

Dimensions
单位
Unit=mm
接线图

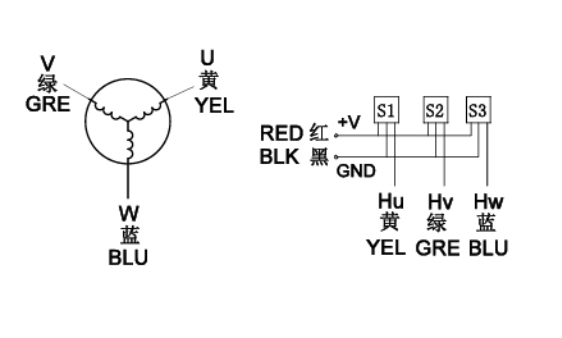

Wiring Diagram
