无刷驱动器BLD6030A
Brushless driver BLD6030A
产品介绍
feature
采用ARM高速芯片控制,可应用于上位机(PLC或单片机等)PWM，频率,或模拟量调速,可采用手动调速方式(自带电位器,也可外接电位器手动调速)过流、过压、欠压、堵转、霍尔信号非法、速度信号输出.优化控制性能,调试简单方便。异常信号报警输出.高速力矩输出平稳,转速稳定。
Use ARM high-speed chip control, can be applied to the host computer(PLC or MCU, etc.)PWM, frequency, or analog speed regulation, can use manual speed regulation (with potentiometer,can also be external potentiometer manual speed regulation) over current, over voltage, under voltage, blocked, hall signal , speed signal output. Optimized control performance, easy to debug.Abnormal signal alarm output, High speed torque output is stable,speed is steady.
电机规格
Electricalspecifications
项目 model | 最小 minimum | 典型值 Typical values | 最大值 maximum |
电压 voltage | 20 | 36 | 60 |
电流 current | 4 | 30 | 60 |
逻辑输入电流 Logical input current | 10 | 20 | 50 |
霍尔供电电源 Hall power supply | 5 | ||
转速控制 rotational speed control | 150 | 3000 | 50000 |
外部电位器调速 External potentiometer speed regulation | 10KΩ | ||
环境湿度 ambient humidity | -10°C | +50°C |

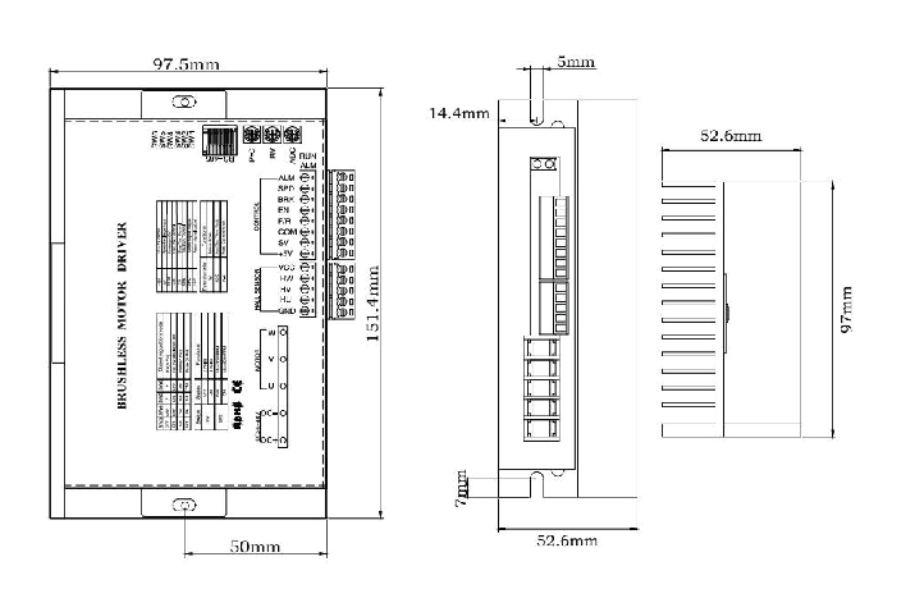

外形尺寸
Dimensions
