S80BL直流无刷电机
S80BL BRUSHLESS DC MOTOR
基本性能
Genaral Specification:
项目 ltem | 性能 Specifications |
绕组方式 Winding Type | 星形 star |
霍尔角度 Hall Effectangle | 120° |
环境温度 Ambient Temperature | -20°C-+50°C |
绝缘电阻 Insulation Resistance | 100 MΩMin.500VDC |
绝缘等级 Insulation class | B |
电气强度 Dielectric Strength | 700VAC for 1 minute |
IP等级 Class of lP | 30 |
电机规格
Electrical Specifications
型号 Model | S80BL86-430 | S80BL106-430 | S80BL126-430 | S80BL126-450 | S80BL126-630 |
极数 Number of poles | 4 | 4 | 4 | 4 | 4 |
相数 Number of phases | 3 | 3 | 3 | 3 | 3 |
额定电压 Nominal voltage VDC | 48 | 48 | 48 | 48 | 310 |
额定转速 Rated speed RPM | 3000 | 3000 | 3000 | 5000 | 3000 |
额定扭矩 Rated torque N-M | 0.4 | 0.7 | 1.2 | 1.2 | 1.2 |
额定电流 Rated current Amps | 5 | 7 | 12 | 12 | 2.1 |
输出功率 Output power W | 126 | 220 | 376 | 628 | 376 |
峰值扭矩 Peak torque N-M | 1.2 | 2.1 | 3.0 | 3.0 | 4.5 |
峰值电流 Peak current Amps | 15 | 21 | 36 | 36 | 6.3 |
力矩常数 Torque constant N-M/A | 0.12 | 0.12 | 0.12 | 0.076 | 0.74 |
反电势常数 Back EMF constant V/KRPM | 12.6 | 12.6 | 12.6 | 8 | 77.5 |
转动惯量 Rotor inertia Kg.mm² | 390 | 530 | 650 | 650 | 650 |
机身长度 Body length mm(L) | 86 | 106 | 126 | 126 | 126 |
重量 Mass Kg | 2 | 2.5 | 3 | 3 | 3 |
传感器 sensor | 霍尔 Honeywell | ||||
产品防护等级 Product Class of lP | IP30 | ||||
存储环境温度 Storage ambient temperature | -25°C-+70°C | ||||
产品表面温度 Product surface temperature | <80°C | ||||
环境湿度 Ambient humidity | 85% RH或以下《无结露) <=85% RH | ||||
工作环境 Working environment | 户外(无阳光直射),无腐蚀气体,无易燃气体,无油雾,无尘埃 No direct sunlight,non-corrosive gas, none flammable gas ,no oil misit,no dust | ||||
电机外形尺寸

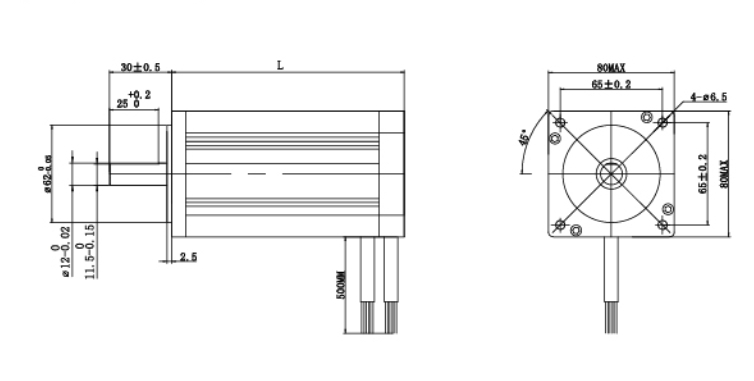

Dimensions
单位
Unit=mm
接线图

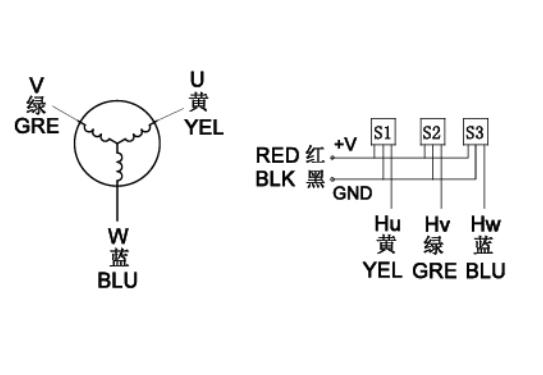

Wiring Diagram
