S90BL直流无刷电机
S90BL BRUSHLESS DC MOTOR
基本性能
Genaral Specification
项目 ltem | 性能 Specifications |
绕组方式 Winding Type | 星形 star |
霍尔角度 Hall Effectangle | 120° |
环境温度 Ambient Temperature | -20°C-+50°C |
绝缘电阻 Insulation Resistance | 100 MΩMin.500VDC |
绝缘等级 Insulation class | B |
电气强度 Dielectric Strength | 700VAC for 1 minute |
IP等级 Class of lP | 30 |
电机规格
Electrical Specifications
型号 Model | S90BL85-430 | S90BL110-430 | S90BL135-430 |
极数 Number of poles | 4 | 4 | 4 |
相数 Number of phases | 3 | 3 | 3 |
额定电压 Nominal voltage VDC | 48 | 48 | 48 |
额定转速 Rated speed RPM | 3000 | 3000 | 3000 |
额定扭矩 Rated torque N-M | 1 | 1.8 | 2.5 |
额定电流 Rated current Amps | 8.3 | 15.6 | 21.8 |
输出功率 Output power W | 315 | 565 | 785 |
峰值扭矩 Peak torque N-M | 3 | 5.4 | 7.5 |
峰值电流 Peak current Amps | 24.9 | 47 | 65.4 |
力矩常数 Torque constant N-M/A | 0.13 | 0.13 | 0.127 |
反电势常数 Back EMF constant V/KRPM | 13.7 | 13.7 | 13.3 |
转动惯量 Rotor inertia Kg.mm² | 160 | 250 | 340 |
机身长度 Body length mm(L) | 85 | 110 | 112 |
重量 Mass Kg | 3.5 | 4.5 | 5 |
传感器 sensor | 霍尔 Honeywell | ||
产品防护等级 Product Class of lP | IP42 | ||
存储环境温度 Storage ambient temperature | -25°C-+70°C | ||
产品表面温度 Product surface temperature | <=80°C | ||
环境湿度 Ambient humidity | 85% RH或以下《无结露) <=85% RH | ||
工作环境 Working environment | 户外(无阳光直射),无腐蚀气体,无易燃气体,无油雾,无尘埃 No direct sunlight,non-corrosive gas, none flammable gas ,no oil misit,no dust | ||

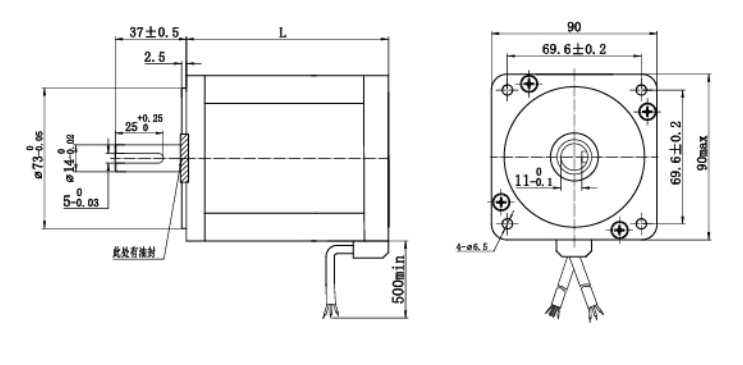

电机外形尺寸
Dimensions
单位
Unit=mm

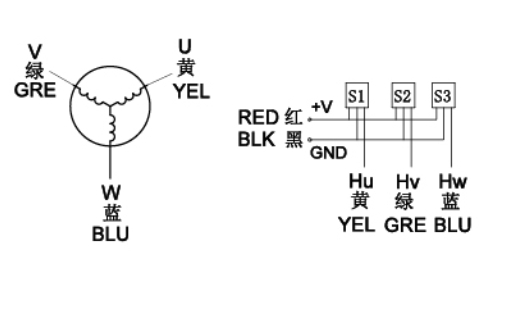

接线图
Wiring Diagram
