S57BL直流无刷减速电机
S57BL BRUSHLESS GEAR MOTOR
基本性能
Genaral Specification
项目 ltem | 性能 Specifications |
绕组方式 Winding Type | 星形 star |
霍尔角度 Hall Effectangle | 120° |
环境温度 Ambient Temperature | -20°C-+50°C |
绝缘电阻 Insulation Resistance | 100 MΩMin.500VDC |
绝缘等级 Insulation class | B |
电气强度 Dielectric Strength | 700VAC for 1 minute |
IP等级 Class of lP | 30 |
电机规格
Electrical Specifications
型号 Model | S57BL45-230 | S57BL55-230 | S57BL75-230 | S57BL95-230 | S57BL115-230 |
极数 Number of poles | 4 | 4 | 4 | 4 | 4 |
相数 Number of phases | 3 | 3 | 3 | 3 | 3 |
额定电压 Nominal voltage VDC | 24 | 24 | 24 | 24 | 24 |
额定转速 Rated speed RPM | 3000 | 3000 | 3000 | 3000 | 3000 |
额定扭矩 Rated torque N-M | 0.055 | 0.11 | 0.22 | 0.33 | 0.45 |
额定电流 Rated current Amps | 1.16 | 2.4 | 4.8 | 6.6 | 8.6 |
输出功率 Output power W | 17 | 35 | 70 | 105 | 140 |
机身长度 Body length L2 mm | 45 | 55 | 75 | 95 | 115 |
传感器 sensor | 霍尔 Honeywell | ||||
产品防护等级 Product Class of lP | IP30 | ||||
存储环境温度 Storage ambient temperature | -25°C-+70°C | ||||
产品表面温度 Product surface temperature | <=80°C | ||||
环境湿度 Ambient humidity | 85% RH或以下《无结露) <=85% RH | ||||
工作环境 Working environment | 户外(无阳光直射),无腐蚀气体,无易燃气体,无油雾,无尘埃 No direct sunlight,non-corrosive gas, none flammable gas ,no oil misit,no dust | ||||
减速机规格
Gearbox Electrical specification
减速级数 Number of geartrains | 一级 | 二级 |
减速比 Reduction ratio | 3.4.5.7. 10. | 20.25.28.30.35.40.45.50.70 |
传动效率 Transmission efficiency | 96% | 94% |
额定允许负载 Rated tolerance torgue | 20 | 40 |
瞬间允许负载 Max momentary tolerance torque | 50 | 60 |
减速箱长度L1 Length(mm) | 80 | 94.5 |
电机外形尺寸

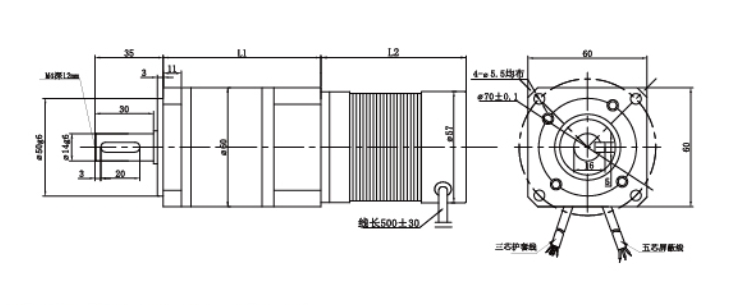

Dimensions
单位
Unit=mm
接线图

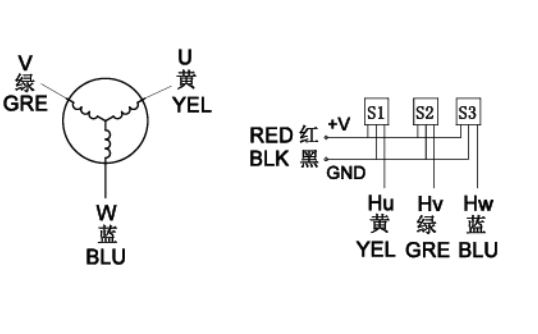

Wiring Diagram
