1.8°57mm直线电机

1.8°57MM(NEMA23)LINEAR MOTOR

基本性能

Genaral Specification

项目

ltem

性能

Specifications

步距角

Step Angle

1.8°

温升

Temperature Rise

80°Cmax

环境温度

Ambient Temperature

-20°C-+50°C

绝缘电阻

Insulation Resistance

100 MΩMin.500VDC

绝缘等级

Insulation class

B

电气强度

Dielectric Strength

700VAC for 1minute

IP等级

Class of IP

30



电机规格

Electrical Specifications

型号

Model No

步距角

Step

 Angle

机身

Model

 Length

电流

Current

 phase

电阻

Resistance

 phase

电感

Inductance

 phase

静扭矩

Holding

 Torque

转子惯量

Rotor

 Inertia

定位扭矩

Dentent

 Torque

引出线

Number

 of Leads

重量

Weight

(°)mmAΩmH
g.cm
g.cm²g.cmNO.
g
S57BYGL41-200A41.841
2.0
1.4
1.4
0.55
150
250
4470
S57BYGL56-300A41.8
56

3.0

1.1
2.5
1.1
2803504
680
S57BYGL78-300A41.878
3.00.5
2.4
1.6
44060041050
S57BYGL78-400A41.878
4.00.381.8
1.6440
60041050
S57BYGL84-300A41.884
3.00.57
2.5
2.0
53060041130
S57BYGL84-400A41.8844.00.72.7
2.0530100041130
S57BYGL100-300A41.81003.00.89
3.4
2.4680110041250
S57BYGL100-420A41.81004.20.9
3.8
2.2
6801100
41250
S57BYGL112-300A41.8112
3.01.6
6.8
2.2
800
1200
41400
S57BYGL112-4200A41.81124.20.9
3.8
2.5
800120041400


注:L2长度可根据客户要求定制。

Note: L legth can be cutomized according to customer requirements.

丝杆参数/Screw parameter

直径

Diameter

丝杆直径

Screw diameter

导程

Lead

导程

Lead

步长

Step

步长

Step

螺母轴向间隙

Nut axial clearance

(mm)(inch)(mm)(inch)1.8°(°)0.9°(°)(mm)
69.525
0.375
0.635
0.025
0.003175
0.0016
0.02-0.03
9.5250.3751.270.05
0.00635
0.0032
0.02-0.03
9.5250.3751.5875
0.0625
0.0079375
0.004
0.02-0.03
9.5250.3752.1167
0.083
0.0105835
0.0053
0.02-0.03
9.5250.3752.54
0.1
0.0127
0.0064
0.02-0.03
9.5250.3753.175
0.125
0.015875
0.0079
0.02-0.03
9.5250.3754.232
0.167
0.02116
0.0106
0.02-0.03
9.5250.3755.08
0.2
0.0254
0.0127
0.02-0.03
9.5250.3756.35
0.25
0.03175
0.0159
0.02-0.03
9.5250.3759.525
0.375
0.047625
0.0238
0.02-0.03
9.5250.37510.16
0.4
0.0508

0.0254

0.02-0.03
9.5250.37512.7
0.5
0.0635
0.0318
0.02-0.03
9.5250.37525.4
1
0.127
0.0635
0.02-0.03

注:直线电机所配螺母可根据客户要求提供,通用螺母为三角形螺母、圆形螺母、消隐螺母

Note: Nuts for linear motor can be provided according to customer requirements, general nuts for triangle nuts, round nuts,blanking nuts.

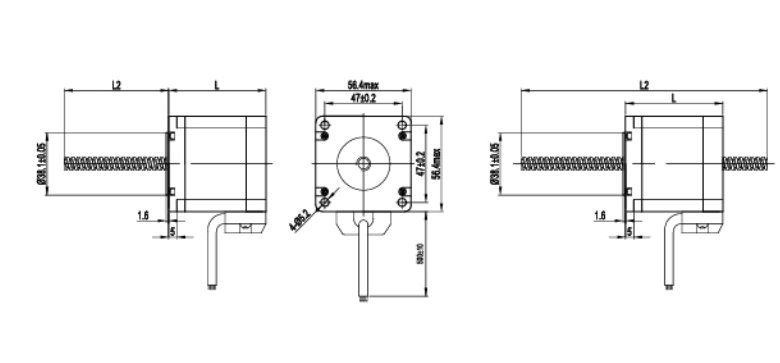

电机外形尺寸

Dimensions

单位

Unit=mm

微信截图_20240710090038

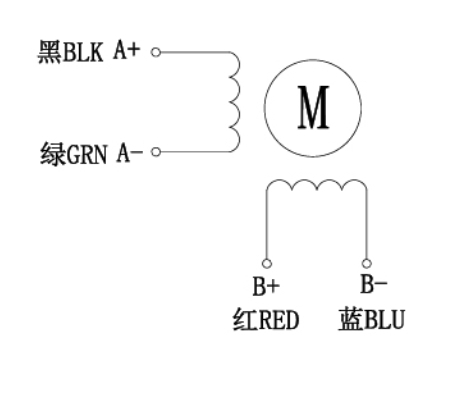

接线图

Wiring Diagram

微信截图_20240710090107
