S86BL直流无刷刹车电机
S86BL BRUSHLESS BRAKE MOTOR
基本性能
Genaral Specification
项目 ltem | 性能 Specifications |
绕组方式 Winding Type | 星形 star |
霍尔角度 Hall Effectangle | 120 |
环境温度 Ambient Temperature | -20°C-+50°C |
绝缘电阻 Insulation Resistance | 100 MΩMin.500VDC |
绝缘等级 Insulation class | B |
电气强度 Dielectric Strength | 700VAC for 1 minute |
IP等级 Class of lP | 30 |
电机规格
Electrical Specifications
型号 Model | S86BL70-230 | S86BL80-430 | S86BL90-430 | S86BL105-430 | S86BL115-430 | S86BL130-430 |
极数 Number of poles | 4&8 | 4&8 | 4&8 | 4&8 | 4&8 | 4 |
相数 Number of phases | 3 | 3 | 3 | 3 | 3 | 3 |
额定电压 Nominal voltage VDC | 24 | 48 | 48 | 48 | 48 | 48 |
额定转速 Rated speed RPM | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
额定扭矩 Rated torque N-M | 0.7 | 1 | 1.3 | 1.8 | 2.1 | 2.5 |
额定电流 Rated current Amps | 6.5 | 8.5 | 12 | 17 | 17 | 19.5 |
输出功率 Output power W | 200 | 300 | 400 | 565 | 659 | 785 |
传感器 sensor | 霍尔 Honeywell | |||||
| 制动器 Brake | 24V/DC 2Nm | |||||
产品防护等级 Product Class of lP | IP30 | |||||
存储环境温度 Storage ambient temperature | -25°C-+70°C | |||||
产品表面温度 Product surface temperature | <=80°C | |||||
环境湿度 Ambient humidity | 85% RH或以下《无结露) <=85% RH | |||||
工作环境 Working environment | 户外(无阳光直射),无腐蚀气体,无易燃气体,无油雾,无尘埃 No direct sunlight,non-corrosive gas, none flammable gas ,no oil misit,no dust | |||||

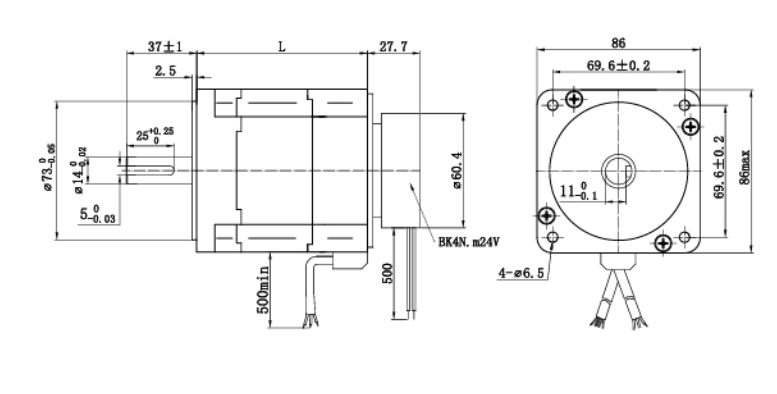

电机外形尺寸/Dimensions
(单位/Unit=mm)

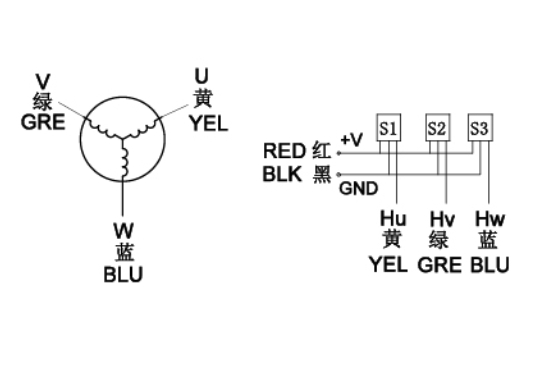

接线图/Wiring Diagram
