S57BL直流无刷电机
S57BL BRUSHLESS DC MOTOR
基本性能
Genaral Specification
项目 ltem | 性能 Specifications |
绕组方式 Winding Type | 星形 star |
霍尔角度 Hall Effectangle | 120° |
环境温度 Ambient Temperature | -20°C-+50°C |
绝缘电阻 Insulation Resistance | 100 MΩMin.500VDC |
绝缘等级 Insulation class | B |
电气强度 Dielectric Strength | 700VAC for 1 minute |
IP等级 Class of lP | 30 |
电机规格
Electrical Specifications
型号 Model | S57BL76-330 | S57BL96-330 | S57B116-330 |
极数 Number of poles | 8 | 8 | 8 |
相数 Number of phases | 3 | 3 | 3 |
额定电压 Nominal voltage VDC | 36 | 36 | 36 |
额定转速 Rated speed RPM | 3000 | 3000 | 3000 |
额定扭矩 Rated torque N-M | 0.36 | 0.48 | 0.68 |
额定电流 Rated current Amps | 3.48 | 5.2 | 7 |
输出功率 Output power W | 94 | 140 | 188 |
峰值扭矩 Peak torque N-M | 0.9 | 1.35 | 1.8 |
峰值电流 Peak current Amps | 12.3 | 18.2 | 23.8 |
力矩常数 Torque constant N-M/A | 0.06 | 0.063 | 0.063 |
反电势常数 Back EMF constant V/KRPM | 0.076 | 0.076 | 0.076 |
转动惯量 Rotor inertia Kg.mm² | 0.21 | 0.32 | 0.43 |
机身长度 Body length mm(L) | 76 | 96 | 116 |
重量 Mass Kg | 0.8 | 1.0 | 1.2 |
传感器 sensor | 霍尔 Honeywell | ||
产品防护等级 Product Class of lP | IP30 | ||
存储环境温度 Storage ambient temperature | -25°C-+70°C | ||
产品表面温度 Product surface temperature | <80°C | ||
环境湿度 Ambient humidity | 85% RH或以下《无结露) <=85% RH | ||
工作环境 Working environment | 户外(无阳光直射),无腐蚀气体,无易燃气体,无油雾,无尘埃 No direct sunlight,non-corrosive gas, none flammable gas ,no oil misit，no dust | ||
电机外形尺寸

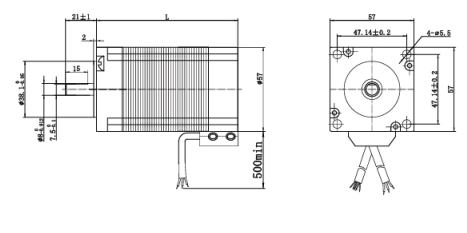

Dimensions
单位
Unit=mm
接线图

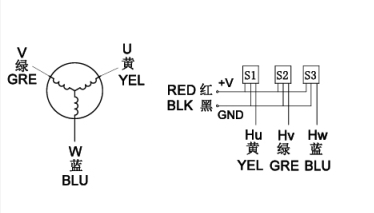

Wiring Diagram
