S36BLR BRUSHLESS DC MOTOR
Genaral Specification
ltem | Specifications |
Winding Type | star |
Hall Effectangle | 120° |
Ambient Temperature | -20°C - +50°C |
Insulation Resistance | 100 MΩMin.500 VDC |
Insulation class | B |
Dielectric Strength | 700 VAC for 1 minute |
Class of lP | 30 |
Electrical Specifications
Model | S36BLR40-140 | S36BLR40-250 | S36BLR50-260 | S36BLR60-280 |
Number of poles | 4 | 4 | 4 | 4 |
Number of phases | 3 | 3 | 3 | 3 |
Nominal voltage VDC | 12 | 24 | 24 | 24 |
Rated speed RPM | 4000 | 5000 | 6000 | 8000 |
Rated torque m N.M | 12 | 12 | 20 | 30 |
Output power W | 5 | 6.2 | 12 | 25 |
Peak torque m N.M | 36 | 36 | 63 | 90 |
Peak current Amps | 1.6 | 1.1 | 2.1 | 3.8 |
Torque constant N.M/A | 20.8 | 35.2 | 30.6 | 24.1 |
Rotor inertia g.cm² | 4.5 | 4.5 | 8.2 | 12 |
Body length mm(L) | 40 | 40 | 50 | 60 |
Mass Kg | 0.15 | 0.15 | 0.18 | 0.22 |
sensor | Honeywell | |||
Product Class of lP | IP30 | |||
Storage ambient temperature | -25°C-+70°C | |||
Product surface temperature | <80°C | |||
Ambient humidity | <=85% RH | |||
Working environment | No direct sunlight,non-corrosive gas, none flammable gas ,no oil misit，no dust | |||

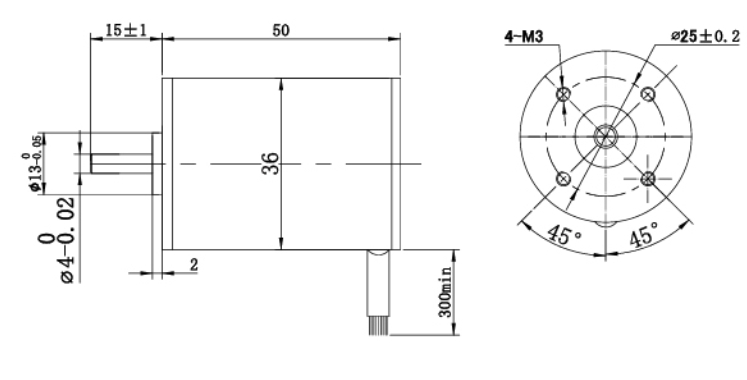

Dimensions
Unit=mm

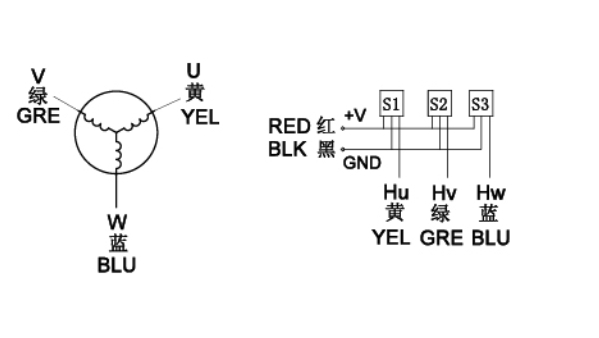

Wiring Diagram
